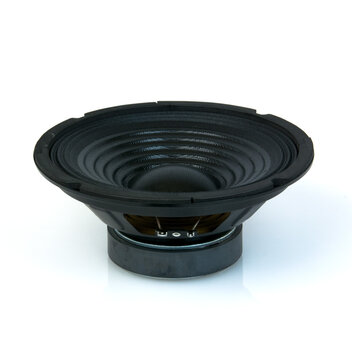

205 mm (8") woofer, - Paper cone - cloth edge, - Output power: 150 watt, - Impedance: 8 Ohm, - Sensitivity: 93 dB

- Frequency response: 55-5000 Hz, - Magnet weight: 20 oz, - Voice coil diameter: 30 mm.

MOUNTING INFORMATION
Overall Diameter 205 mm (8")
Bolt Circle Diameter 195 mm
Baffle cutout Diameter 182 mm
Depth 86 mm
Mounting Depth 79 mm
Net Weight 1.1 Kg
SPECIFICATIONS
Nominal Impedance 8 Ohm
Power 150W
Sensitivity (1W/1m) 93 dB
Frequency Range 55-5000 Hz
Voice Coil Diameter 30 mm
Magnet Ferrite
Magnet weight 20 oz
Basket Material Steel
THIELE AND SMALL PARAMETERS
Qes 1,108
Qms 4,074
Qts 0,815
Vas 2,6 l
Sd 206,01 cm²
Mms 22.945 gr
Bl 5,115 Tm
Mmd 21,245 gr
Cms 44,281 μm/N
