.220 W, 8 ohma, 90 dB, 55-5500 Hz, vanjski promjer 255 mm

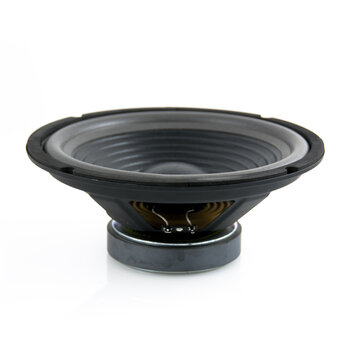

255 mm (10")  woofer, Paper cone - foam edge

- Output power: 220 watt,  Impedance: 8 Ohm, Sensitivity: 90 dB, Frequency response: 55-5500 Hz,  Magnet weight: 30 oz

- Voice coil diameter: 1.5",

MOUNTING INFORMATION
Overall Diameter 255 mm (10")
Bolt Circle Diameter 242 mm
Baffle cutout Diameter 232 mm
Depth 104 mm
Mounting Depth 95 mm
Net Weight 1.8 Kg
SPECIFICATIONS
Nominal Impedance 8 Ohm
Power 220 W
Sensitivity (1W/1m) 90 dB
Frequency Range 55-5500 Hz
Voice Coil Diameter 1.5"
Magnet Ferrite
Magnet weight 30 oz
Basket Material Steel
THIELE AND SMALL PARAMETERS
Qes 1,209
Qms 4,665
Qts 0,960
Vas 57,604 l
Sd 310,086 cm²
Mms 31,215 gr
Bl 7,266 Txm
Cms 419.790 uM/N
